Google Translate Architecture illustrated

Google Translate is an application to translate one language to another in real time. The Google Translate App can translate from handwriting, voice, and camera, and outputs speech and text-over-image. Google Translate uses Google neural machine translation. This post explains Google Translate architecture and technologies, especially how Google Translate uses the transformer model and enhances its performance.

Google translate architecture

Table of Content

  1. Introduction to Google Translate
  2. Google Neural Machine Translation(GNMT)
  3. Transformer model and GNMT New Models
  4. Speech-to-Speech Translation(S2ST)
  5. Optical Character Recognition (OCR)
  6. Timeline and FAQ

1. Introduction to Google Translate

Google Translate is powered by state-of-the-art AI technologies with neural networks. These include:

  • Text: text-to-text translation
  • Pen: handwriting recognition and translation
  • Camera: text recognition, machine translation, and image synthesis
  • Conversation: speech-to-text translation and speech synthesis
  • Transcribe: speech-to-text translation

The technologies such as text-to-text machine translation, speech recognition, speech-to-text translation, text-to-speech synthesis, handwriting recognition, text recognition, and image synthesis are building blocks of Google Translate. Some components work together as a cascaded system. Some cascaded systems are in the process of being replaced by end-to-end models.

In this post, I will explain the technologies used in Google Translate.

2. Google Neural Machine Translation (GNMT)

In the history of machine translation, different approaches were used. There were Rule-based Machine Translation(RBMT), and Statistical Machine Translation(SMT). Since 2014,  Neural Machine Translation (NMT) has taken over.

Neural Machine Translation is one of the AI applications under the umbrella of natural language processing (NLP). NLP are technologies to make machines understand and generate human speech or text.

The basic form of neural machine translation is an encoder-decoder architecture. An encoder converts the input words to vectors; a decoder converts vectors to words in another language. In this model, both encoder and decoder use Recurrent Neural Networks (RNN). RNN is a neural network that uses feedback connections to propagate information from one step to the next.  In NMT, RNN is a stacked multi-layer of Long short-term memory (LSTM). LSTM is a type of RNN that is capable of performing sequence-to-sequence transfer.

Encoder-decoder architecture

But there are problems with RNN. Different languages have different grammars. The sequence of words in a sentence might not match between languages. Additionally, RNN has difficulty remembering long sentences.

In 2015, an attentional mechanism began to be used in neural machine translation. An attentional mechanism mimicked the humans’ attention to focus on the answer they are looking for and ignore others. This was accomplished by assigning different weights to different words. As a result, it allowed the encoder and decoder to focus on different regions of the sentence. The addition of an attentional mechanism overcomes the “short memory problem” of RNN and LSTM. The new neural network translation system coped effectively with long input sequences.

In 2016, Google pushed out Neural Machine Translation (GNMT). It inherited and enhanced the previous NMT models. Both the encoder and decoder had 8 layers of RNN so that RNN was deep enough to catch subtle irregularities. Each layer ran on different GPUs To improve parallelism.

Meanwhile, there was an attention module sitting between the encoder and the decoder.  The attentional mechanism connected the bottom layer of the decoder to the top layer of the encoder to achieve good accuracy.

Google neural network translation

Google team also made other tweaks in their NMT, such as applying one layer of bi-directional LSTM,  residual connections, and beam search. All these changes greatly improved the performance of GNMT. A year later, Zero-Shot translation was implemented. The system could translate the language that had never been directly trained on.

3. Transformer model and GNMT New Models

In 2017, A groundbreaking transformer model was introduced. It was solely based on attentional mechanisms. The phrase “Attention is all you need” means attentional mechanisms were used in both the encoder and decoder. They replaced RNN and CNN completely.

In this model, both encoder and decoder have 6 stacked layers. Each layer has sub-layers of multi-head self-attention and feed-forward. In the decoder, there is an additional sub-layer of multi-head cross-attention. The cross-attention performs an attention function over the output of the encoder layers. This attentional mechanism draws global dependencies between input and output.

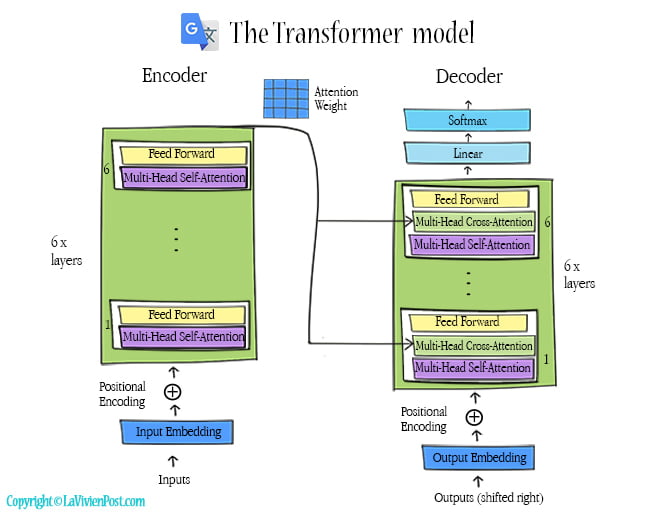

Transformer model

The transformer model is not a sequence-to-sequence transfer as RNN. To remember the relative or absolute position of the words in the sentence, a positional encoding layer is added at the bottom of the encoder or decoder stacks. A self-attention is an attentional mechanism that models relations between all words in a sentence. The attentional mechanism compares the given word to every other word. The result of the comparison is an attention weight for every other word in the sentence.

Since there is no sequence, the self-attention functions can run in parallel. A multi-head self-attention has 8 parallel attention “heads”. Their results are concatenated and projected as the output and sent to a feed-forward network. The parallelization takes full advantage of modern machine learning hardware such as TPUs and GPUs, and it is the key to making the transformer efficient and fast.

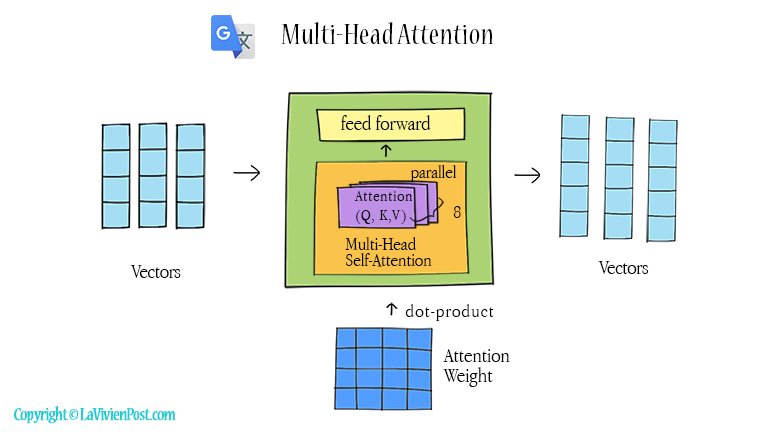

Multi-head attention

The transformer outperforms both recurrent and convolutional models. It requires significantly less time to train. Many NLP systems, including Google neural networks translation (NMT), Google search query understanding system (e.g., BERT), and text auto-generator (e.g., GPT) have adopted the transformer model.

Nevertheless, the Google translation team continued improving their NMT. In 2018, They introduced hybrid architectures of NMT which combined a transformer encoder and an RNN decoder.  They carried on the experiments and found that hybrid models, mixed with transformer and RNN horizontally and vertically in the encoder, performed the best.

Hybrid neural machine translation

GNMT provides reliable quality text-to-text translation. It also plays as a middleman in the speech translation and image translation.

4. Speech-to-Speech Translation (S2ST)

In the past, conversation translation used a cascaded system of three components: automatic speech recognition(ASR), text-to-text machine translation (MT), and text-to-speech(TTS) synthesis. The ASR and machine translation were combined into a single end-to-end Speech-to-text translation (ST) system.

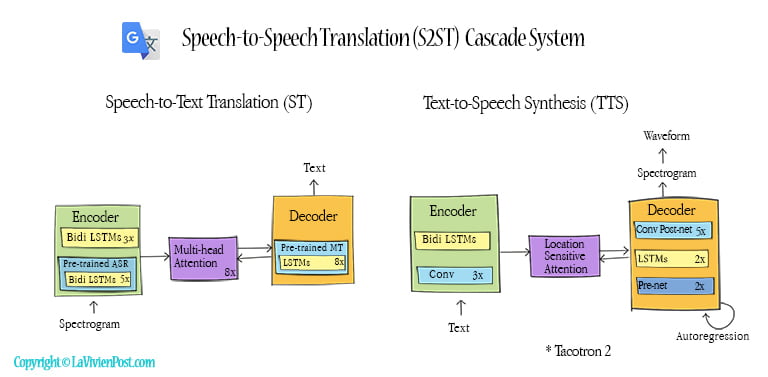

Speech cascade system

In a speech-to-text translation (ST) system, the encoder has pre-trained ASR, and the decoder has pre-trained MT. After the translated texts are generated, they are sent downstream, which is text-to-speech synthesis (TTS). In this graph, TTS uses the Google Tacotron 2 model.

Speech cascade system

In 2019,  Google introduced the first direct speech-to-speech translation, called translatotron. Translatotron could translate speech from one language to speech in another language, without the intermediate text representation. This system was also able to retain the source speaker’s voice.  In  2022, Google pushed out translatotron 2. It outperformed translation and approached the performance of the cascaded system.

Translatotron 2

In this model, the encoder contains a speech recognition system Conformer. The conformer combines convolution neural networks (CNN) and transformers. The decoder uses multi-layer LSTMs. It generates linguistic information. A single multi-head attention sits between the encoder and decoder.

A synthesizer performs speech synthesis using a duration-based system Non-Attentive Tacotron (NAT).  The synthesizer is conditioned on the output from both the decoder and the attention. After the synthesizer generates spectrograms, a neural vocoder, such as WaveNet or WaveRNN, converts spectrograms to time-domain waveforms.

5. Optical Character Recognition (OCR)

Google Translate provides handwriting and instant camera translation. The technology behind both is optical character recognition (OCR). OCR is a collection of technologies to automatically detect and recognize the texts on paper or in the wild, and turn them into a digital format that computers can edit, search, and store.

Let’s look at handwriting OCR first. When you tap the pen icon in Google Translate and write characters,  The app displays possible letters or words. You can select one of them. Internally, the touch points are the input. The first step is to convert the sequence of points into a sequence of cubic Bezier curves. Next, a multi-layer recurrent neural network (RNN) converts the curves into the matrix with a probability distribution over all possible letters. Then the CTC decoder outputs the characters. Connectionist temporal classification (CTC) is an algorithm that allows the output labels to be aligned with the input sequence.

handwriting OCR

The instant camera translation allows you to point the camera at documents or public signs and translate them. The pipeline includes OCR, machine translation, and image synthesis. The text detection uses a region proposal network (Convolutional model) to extract the text in the image and put the bounding boxes around the text. The texts are isolated from the background objects.  Then the text recognition uses NLP-based networks (CNN and LSTM networks) and CTC to convert the extracted information to construct meaningful sentences.

Instant camera translation

When OCR identifies characters, it also determines the metadata, such as size, font, color and camera angle. This process is called layout analysis.

The recognized texts are fed into GNMT for translation. Down the pipeline, the translated texts are rendered on top of the original text in the same style, matching the original font, size, and length.  It also uses generative adversarial networks (GAN) to rebuild the pixels underneath to make the translation look natural. GAN is a type of deep learning model used to generate synthetic data samples that are similar to a training dataset.

In 2020, the researchers proposed an end-to-end in-image neural machine translation. The proposed system could potentially improve the overall quality of image translation.

6. Timeline

Here is the timeline of Google neural network technologies.

2006Google launched Google Translate, which used statistical machine translation.
2011Google Brain started neural networks in NLP.
2015Google launched handwriting input.
2015Attention mechanism began to be used in NMT.
2016Google’s Neural Machine Translation was introduced.
2016WaveNet – The first model to generate human-like natural waveform.
2017Transformer model – use Attention mechanisms to replace RNN and CNN.
2018Hybrid models of Transformer and RNN in GNMT
2019Translatotron- The first direct speech-to-speech translation model.
2020In-image translation – A proposal of direct image-to-image translation model.
2022Translatotron 2- An improved direct speech-to-speech translation model.

How Google Translate works (YouTube)
How ChatGPT works

What does the phrase “Attention is all you need” mean in the transformer model?

The transformer model is solely based on attentional mechanisms. The phrase “Attention is all you need” means attentional mechanisms were used in both the encoder and decoder. They replaced commonly used RNN and CNN completely.

Does Google Translate use a transformer?

Yes, Google Translate uses a hybrid model of transformers and RNNs to get good performance.

What AI technologies are used in Google Neural Machine Translation?

Google Neural Machine Translation uses RNN (LSTM) and Transformer.
