Data structures illustration and PDF

What are common data structures?

The common data structures include arrays, linked lists, stacks, queues, trees, hash tables and graphs. Different types of data structures are suited to different kinds of applications.

Table of Content

  1. Array
  2. Linked list
  3. Tree
  4. Binary tree
  5. Binary search tree
  6. matrix
  7. Graph
  8. Hash table
  9. Stack
  10. Queue
  11. Priority queue
  12. Map-Heap
  13. Min-Heap
  14. Trie
  15. Suffix trie
  16. Data structured illustration PDF and EPUB

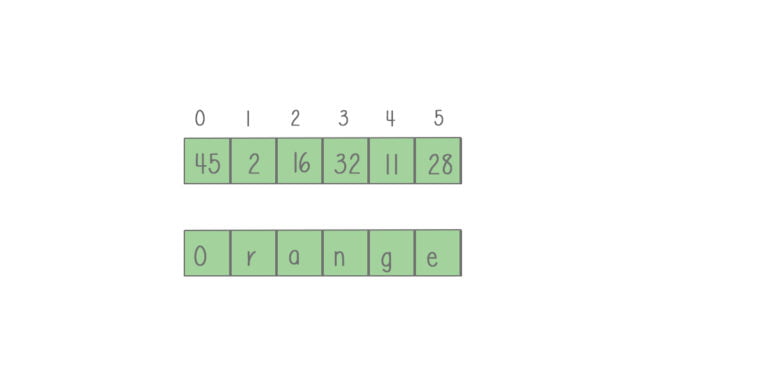

Array: An array is an index-based data structure, which means every element is referred by an index. An array holds same data type elements.

data structure array diagram

Linked list: A linked list is a sequence of nodes in which each node is connected to the node following it. This forms a chain-link of data storage. It consists of data elements and a reference to the next record.

data structure linked list diagram

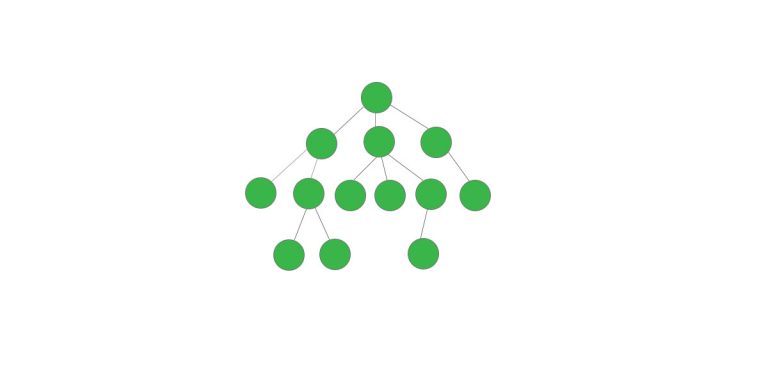

Tree: A tree is a collection of nodes connected by edges. Each node points to a number of nodes. A tree represents the hierarchical graphic form.

data structure tree diagram

Binary tree: A binary tree has 1 or 2 nodes. It can have a minimum of zero nodes, which occurs when the nodes have NULL values.

data structure binary tree diagram

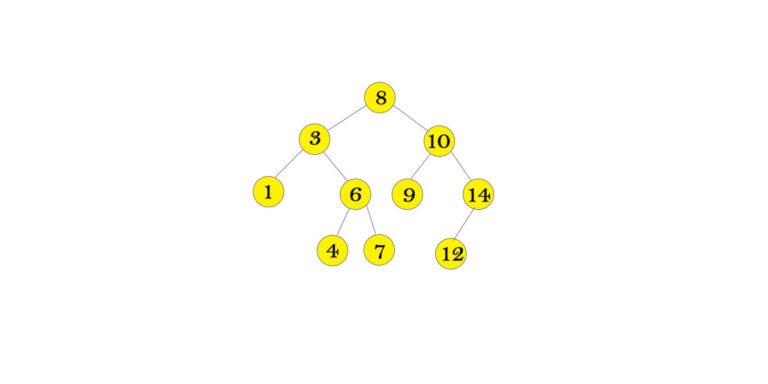

Binary search tree: A binary search tree (BST) is a binary tree. The left subtree contains nodes whose keys are less than the node’s key value, while the right subtree contains nodes whose keys are greater than or equal to the node’s key value. Moreover, both subtrees are also binary search trees. A binary search tree can retrieve data efficiently.

data structure binary search tree diagram

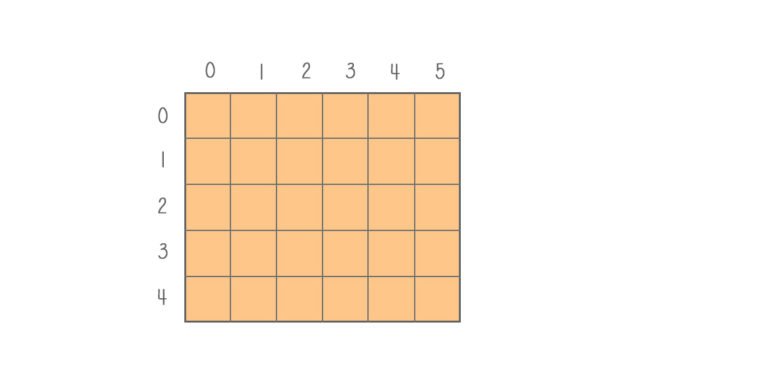

Matrix: A matrix is a double-dimensioned array. It makes use of two indexes rows and columns to store data.

data structure matrix diagram

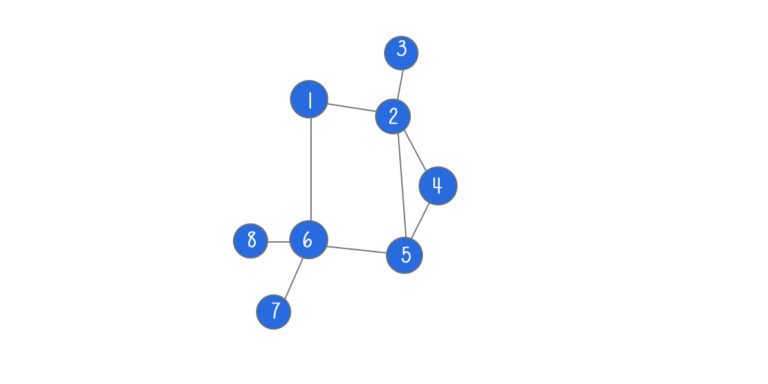

Graph: A graph contains a set of nodes and edges. The nodes are also called vertices. Edges are used to connect nodes. Nodes are used to store and retrieve data.

data structure graph diagram

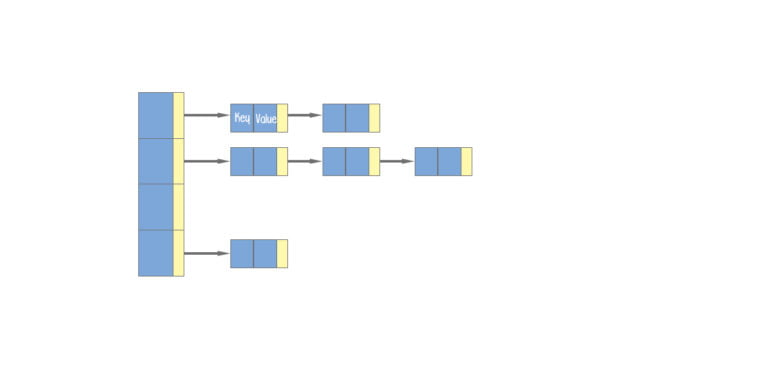

Hash table: Hash table is a data structure that can map keys to values. A hash table uses a hash function to compute a key into an integer (hash value), which indicates the index of the buckets (aka array). From the key, the correct value can be stored and found. Hash table is one of the most used data structures.

data structure graph diagram

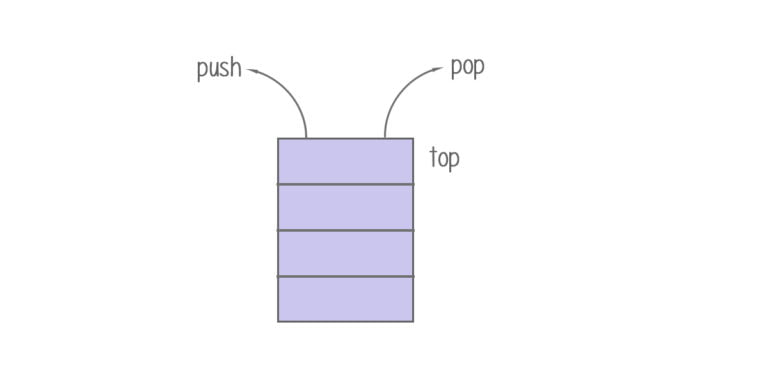

Stack: a stack is LIFO data structure in which only the top element can be accessed. The data is added by push and removed by pop on top.

data structure stack diagram

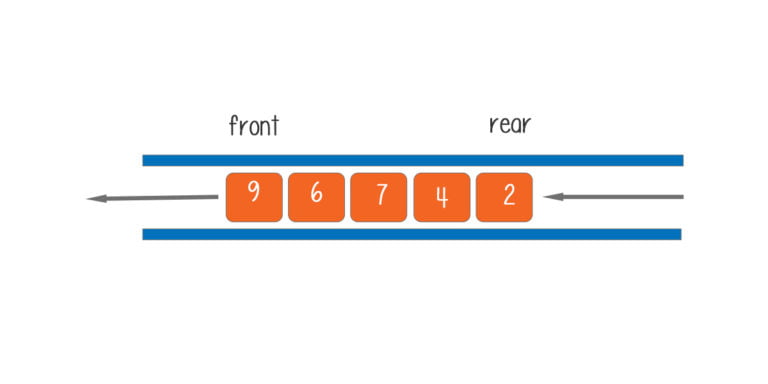

Queue: A queue is FIFO data structure. In this structure, new elements are inserted at one end and existing elements are removed from the other end.

data structure queue diagram

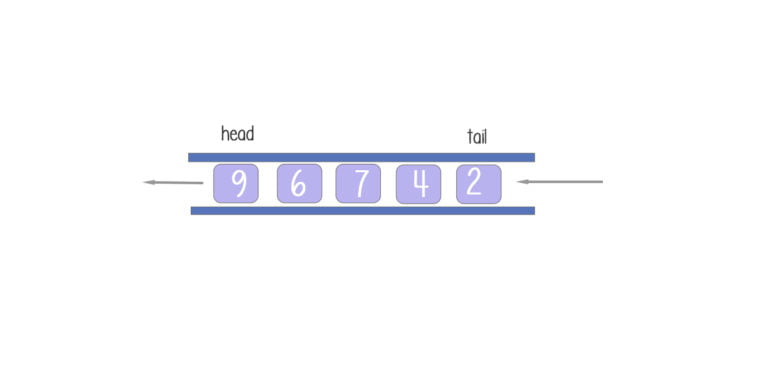

Priority queue: Priority queue is a queue, with each element having a priority associated with it. The implementation can use ordered array, unordered array, and heap.

data structure priority queue diagram

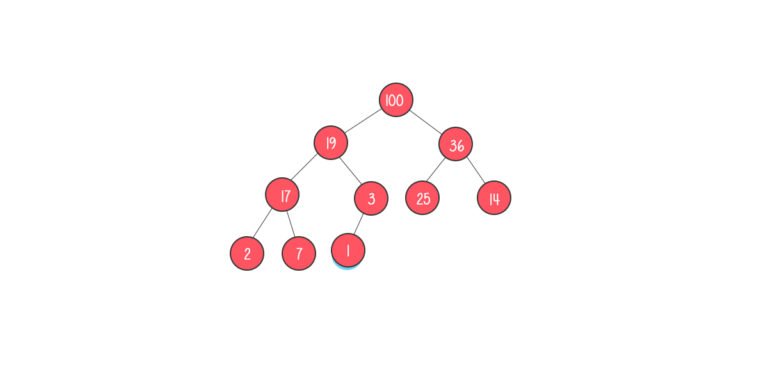

Max-Heap: A heap is a tree-based data structure in which all the nodes of the tree are in a specific order. Max-heap is a binary tree. It is complete. The data item stored in each node is greater than or equal to the data items stored in its children.

data structure max heap diagram

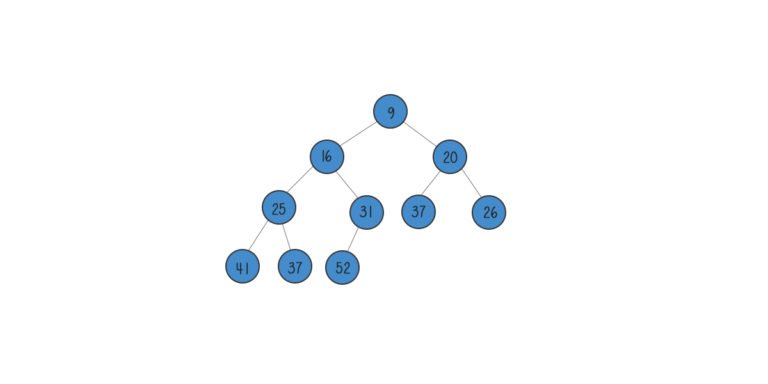

Min-Heap: Min-heap is a binary tree. It is complete. The data stored in each node is less than the data items stored in its children.

data structure min heap diagram

Trie: A Trie is a tree. In a trie, every node (except the root node) stores one character or a digit. By traversing the trie down from the root node to a particular node n, a common prefix of characters or digits can be formed which is shared by other branches of the trie as well.

data structure min trie diagram

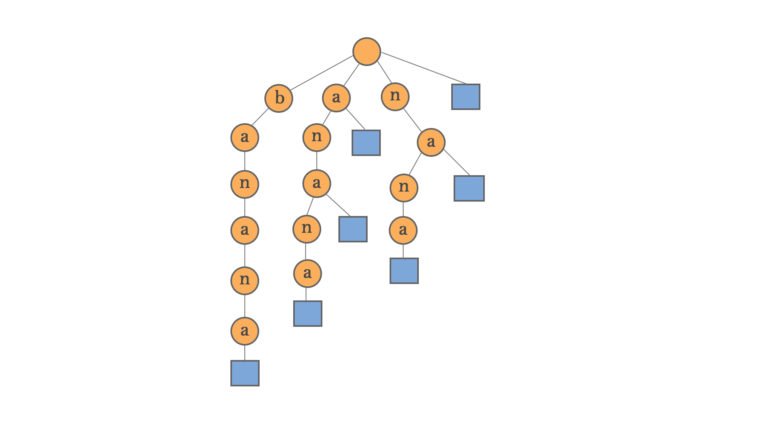

Suffix trie: Suffix trie is a trie containing all the suffixes of the given text. Suffix trie allows particularly fast implementations of many important string operations.

data structure suffix trie diagram

Data structures PDF and EPUB:
